Steel Bar System for Tunnel Support Refined Rolled Full Threaded Thread Bar Anchor Rod

Name: Steel Bar System for Tunnel Support Refined Rolled Full Threaded Thread Bar Anchor Rod
Brand: Kelleg
Price: 8.80 USD

Quality Steel Bar System for Tunnel Support Refined Rolled Full Threaded Thread Bar Anchor Rod wholesale

Condition : New

Warranty : 1.5 years

Applicable Industries : Building Material Shops, Construction works , Energy & Mining

Weight (KG) : 8

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Place of Origin : Shanghai, China

Brand Name : Kelleg

Type : steel

Machine Type : Drilling Tool

Material : Iron, PSB500, PSB830, PSB930

Processing Type : Casting

Use : Mine Roadway Support

Product name : Thread Bar System

Keyword : Thread Bar

Quality : High Quality Inspection

Color : Silver, Black, Clean or Zinc Galvanized

Size : 15mm-65mm

Length : 1-12m

Usage : Soil Nails, Rock Bolts, Micro Piles, Ground Anchors

Surface treatment : As Required

ISO : 9001

Price : $8.80/meters 1-499 meters

Contact Now

Refined Rolled Full Threaded Thread Bar Anchor Thread Rod Steel Bar System for Tunnel Support

Steel Bar System for Tunnel Support Refined Rolled Full Threaded Thread Bar Anchor Rod

Refined Rolled Full Threaded Thread Bar Anchor Thread Rod Steel Bar System for Tunnel Support

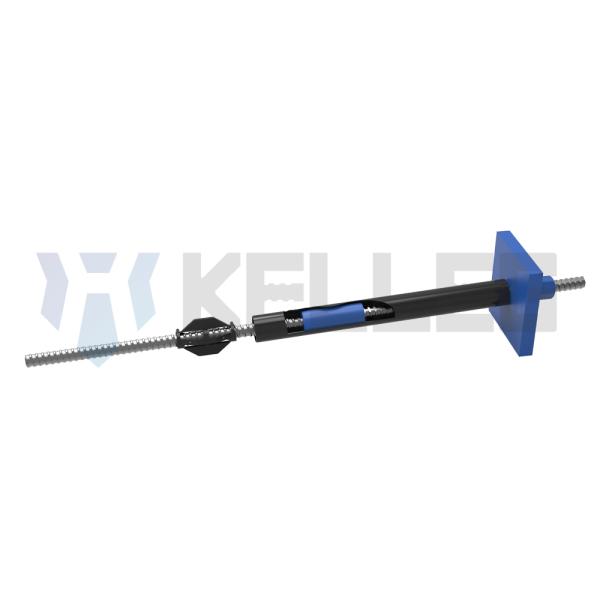

The precision rolled threaded bar system consists of precision rolled threaded bar, connector, hexagonal nut, and flat plate, featuring high strength, flexible structure, and a wide range of applications. threaded bars can be used as soil nails, anchors, mini-piles, and other structures for slope support, embankment reinforcement, landslide management, foundation uplift control, and so on. in geotechnical anchoring engineering, rebars can be categorized into three anti-corrosion systems according to their anti-corrosion properties: different soil environments and engineering service life. The system is based on fine-rolled rebar with hold-ups, bellows, end caps, smooth plastic tubes, and so on.

Main Diameter: 20 (left), 25 (right), 32 (right). customized specifications are also available such as 28 (right), and 34 (right).
Yield Strength (MPa): PSB500, PSB830, PSB930, PSB1080, and PSB1200.

Hot-dip Galvanized Coating Requirements
Product Specification	Local Coating Thickness(um)	Mean Coating Thickness(um)	Max.Coating Thickness(um)
threaded rods	70~200	85	200

Dimensions and Specifications
Dia.（mm）	PSB500	PSB830	PSB930	PSB1080
15	KTB15-Q500	KTB15-Q830	KTB15-Q930	KTB15-Q1080
20	KTB20-Q500	KTB20-Q830	KTB20-Q930	KTB20-Q1080
25	KTB25-Q500	KTB25-Q830	KTB25-Q930	KTB25-Q1080
32	KTB32-Q500	KTB32-Q830	KTB32-Q930	KTB32-Q1080
36	KTB36-Q500	KTB36-Q830	KTB36-Q930	KTB36-Q1080
40	KTB40-Q500	KTB40-Q830	KTB40-Q930	KTB40-Q1080
50	KTB50-Q500	KTB50-Q830	KTB50-Q930	KTB50-Q1080
60	KTB60-Q500	KTB60-Q830	KTB60-Q930	KTB60-Q1080
65	KTB65-Q500	KTB65-Q830	KTB65-Q930	KTB65-Q1080
75	KTB75-Q500	KTB75-Q830	KTB75-Q930	KTB75-Q1080

1) Non-anticorrosive System

Non-anticorrosive anchorage system is suitable for temporary support in non-corrosive environments, and cement grout will protect the anchoring section.

2) Class I Anti-corrosion System

Class I anti-corrosion anchoring system is suitable for semi-permanent support and permanent support in corrosive environment. Anchorage section is protected by corrugated pipe, end cap, cement grout, and the free section is protected by smooth plastic pipe.

3) Class II Anti-corrosion System

Class II anti-corrosion anchoring system is used for temporary support in corrosive environment and semi-permanent support in non-corrosive environment. Anchorage section is protected by cement grout, and the free section is protected by smooth plastic pipe.

Kelleg is a market-oriented enterprise integrating R&D and designing, procurement, sales, and customer service. Kelleg focuses on the field of geotechnical anchoring and is committed to building a professional service platform that integrates system solution provision, product supply, and technical support. We have professional technical, procuring, marketing, order management, and after-sale service teams, which can provide customers with pre-sale technical solution consultation and product selection suggestions, in-sale order management, after-sale on-site technical guidance, and other services.

FAQ:

1: Is there a minimum order quantity?
A: We generally have no minimum order quantity.

2: Do you have the inspection procedures?
A: 100% strict inspection and testing for every order before packing.

3: How long is your delivery time?
A: 1-3 days for the products in stock; regular order delivery in 2-3 weeks.

4: After Services:
1. Our sales team will respond to your question within 24 hours (holidays excluded).
2. Technical support will be available at any time.
3. Free replacement will be provided once the failure is confirmed caused by our product quality.

Steel Bar System for Tunnel Support Refined Rolled Full Threaded Thread Bar Anchor Rod Images
